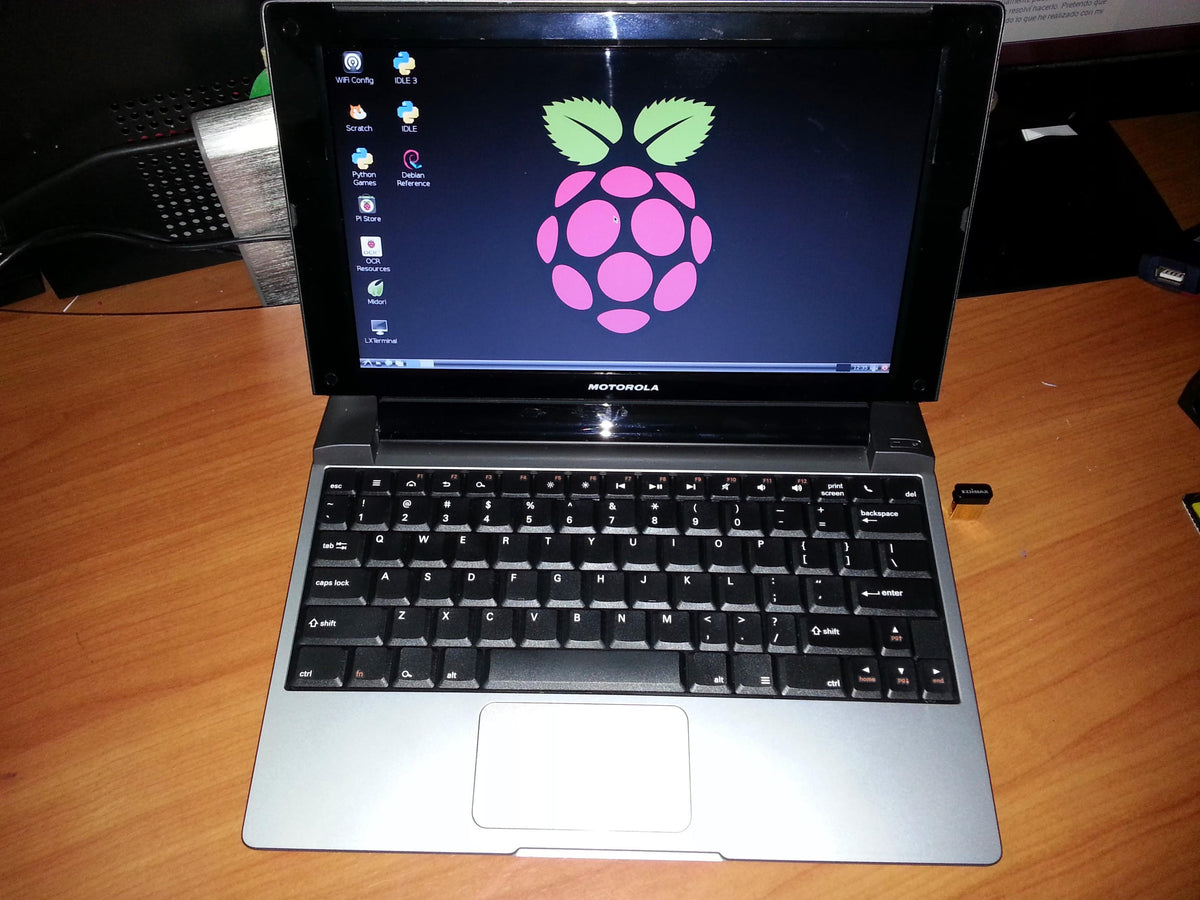

DIY Raspberry Pi Laptop: Using a Lapdock as a Pi Monitor & Keyboard
Introduction: The Ultimate Geek Upcycling Project
What if you could turn a tiny single-board computer into a portable Linux laptop without designing a custom case, soldering wires, or buying an expensive display?
That's exactly what a raspberry pi lapdock setup offers.
A lapdock is essentially a laptop shell that includes a display, keyboard, trackpad, speakers, battery, and ports—but without its own processor. Pair it with a Raspberry Pi, and you instantly create a compact portable computer that can run Linux, write code, browse the web, or even emulate retro games.
The idea isn't new. More than a decade ago, hackers discovered that the iconic Motorola Atrix Lapdock could be repurposed for Raspberry Pi projects. Today, modern devices such as NexDock and CrowView Note have taken the idea much further with USB-C connectivity, larger batteries, and full HD displays.
Whether you are building a Linux workstation, a portable cybersecurity kit, or simply want a fun weekend project, a lapdock raspberry pi setup remains one of the coolest DIY projects in the maker community.
Of course, there are challenges.
Power backfeeding, HDMI compatibility, and keyboard mapping have frustrated many first-time builders. Fortunately, these problems are completely solvable with the right hardware and setup process.
This guide walks you through everything you need to know.
Hardware Checklist: Choosing the Right Lapdock
Not all lapdocks are created equal.
The ideal setup depends on whether you prefer a vintage hacker project or a modern plug-and-play experience.
Modern Lapdocks
Modern lapdocks are by far the easiest option.
Popular choices include:
- NexDock 2
- NexDock XL
- NexDock Wireless
- CrowView Note
- UPERFECT Lapdock
These devices use USB-C for video, keyboard, trackpad, and power delivery.
For a raspberry pi 4 lapdock project, they work almost immediately with minimal configuration.
Advantages:
- Full HD IPS screens
- USB-C video input
- Integrated batteries
- Better keyboards
- Reliable touchpads
- Standard PD charging
If convenience matters most, this is the recommended direction.
Vintage Motorola Lapdocks
For hardware enthusiasts, few projects are as nostalgic as using a Motorola lapdock.
The original Motorola Atrix 4G Lapdock and Droid Bionic Lapdock were designed as smartphone docks long before Samsung DeX existed.
Years later, hackers discovered they could be repurposed for Raspberry Pi projects.
The motorola lapdock raspberry pi community has kept these devices alive because they offer:
- Built-in batteries
- Lightweight aluminum design
- Full keyboard and trackpad
- Compact 11-inch display
- Affordable prices on the used market
However, they require additional adapters and some patience.
Essential Adapters and Cables
The accessories you need depend on your lapdock model.
For Motorola Atrix Lapdock
You will need:
- Micro HDMI female to HDMI male adapter
- HDMI extension cable
- Micro USB female to USB-A adapter
- USB power isolation cable
- Optional Y-split USB cable
This setup is essential for any motorola atrix lapdock raspberry pi 4 build.
For Modern USB-C Lapdocks
Things become much simpler.
You usually only need:
- Micro HDMI to HDMI cable
- USB-C cable
- USB-A to USB-C data cable if required
Modern pi lapdock projects often take less than ten minutes to assemble.
Step 1: Solve the Power Backfeeding Problem
This is the most important step for vintage Motorola lapdocks.
If you connect a standard USB cable directly, power may flow in both directions.
This can create:
- Under-voltage warnings
- Random reboots
- USB instability
- Potential hardware damage
The classic motorola lapdock raspberry pi solution is to isolate the 5V line.
You can do this in two ways:
Option 1: Use a Power Isolation Cable
The easiest and safest solution.
These cables block the 5V power pin while allowing data communication.
Option 2: Modify a USB Cable
Advanced users often cut the red 5V wire inside a USB extension cable.
Leave:
- White wire (Data -)
- Green wire (Data +)
- Black wire (Ground)
Remove:
- Red wire (5V Power)
This prevents power backfeeding while preserving keyboard and trackpad functionality.
Step 2: Connect HDMI Before Powering On
HDMI timing is surprisingly important.
Older lapdocks rely on HDMI hotplug detection to activate their internal power circuits.
Before powering on:
- Connect Raspberry Pi HDMI output to the lapdock.
- Make sure every connector is fully inserted.
- Close and reopen the lapdock screen if necessary.
Many motorola atrix lapdock raspberry pi 4 users discover that reconnecting HDMI solves display problems instantly.
Step 3: Connect Keyboard and Trackpad
Once HDMI is connected, attach the USB data cable.
This cable enables:
- Keyboard input
- Mouse movement
- Trackpad gestures
- Media keys
For Raspberry Pi 4 and Raspberry Pi 5, connect it to a standard USB port.
Your raspberry pi lapdock now behaves like a traditional laptop.
Step 4: Boot the System
After all cables are connected:
- Charge the lapdock battery.
- Connect Raspberry Pi power.
- Open the lapdock screen.
- Wait for Linux to boot.
If everything works correctly:
- Raspberry Pi LED flashes.
- Lapdock screen turns on.
- Keyboard responds immediately.
- Mouse cursor becomes active.
Congratulations.
You have successfully built a lapdock raspberry pi portable computer.
Troubleshooting Power Issues
One of the most common problems is the lightning bolt icon.
This means your Raspberry Pi is receiving insufficient power.
Why It Happens
Older Motorola lapdocks usually provide:
- 5V / 1A
- 5V / 1.5A
Meanwhile:
- Raspberry Pi 4 recommends up to 3A.
- Raspberry Pi 5 can require 5A.
This mismatch causes instability.
Solution 1: Independent Power
Many makers power:
- Raspberry Pi from a PD power bank.
- Lapdock from its internal battery.
This is often the most stable arrangement.
Solution 2: Optimize Raspberry Pi Settings
Reduce unnecessary power usage.
Disable:
- Bluetooth
- WiFi if unused
- USB peripherals
- RGB lighting accessories
A lean system creates a more reliable raspberry pi 4 lapdock experience.
Fixing HDMI Blank Screen Problems
Sometimes the lapdock stays black after booting.
This is especially common with vintage hardware.
Fortunately, Raspberry Pi allows you to force HDMI detection.
Add the following lines to your config file:
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=86
These settings:
- Force HDMI output.
- Improve signal strength.
- Fix handshake issues.
- Enable uncommon display resolutions.
Many motorola lapdock raspberry pi builders rely on these settings.
Fixing Keyboard and Trackpad Problems
The keyboard usually works immediately.
The trackpad is another story.
Some lapdocks have overly sensitive touchpads.
Common symptoms include:
- Cursor jumping
- Palm touches while typing
- Random clicks
- Ghost movements
Disable the Touchpad with xinput
You can identify your touchpad device:
xinput --list
Then disable it:
xinput --set-prop "SINO WEALTH USB KEYBOARD Mouse" "Device Enabled" 0
This is a popular fix among pi lapdock users who prefer using an external mouse.
Raspberry Pi Zero: Can It Work with a Lapdock?
Absolutely.
A pi zero lapdock setup is one of the most portable Linux computers you can build.
Because Raspberry Pi Zero consumes very little power, battery life can be excellent.
Popular uses include:
- Portable SSH terminal
- Cybersecurity toolkit
- Portable network monitor
- Retro gaming console
- Lightweight Linux workstation
The entire setup can fit inside a small sling bag.
Raspberry Pi 5: The Most Powerful Portable Linux Laptop
The Raspberry Pi 5 changes the game.
Combined with a modern lapdock, it becomes a surprisingly capable daily computer.
You can comfortably:
- Run VS Code
- Use Chromium with multiple tabs
- Develop Python projects
- Access Docker containers
- Edit photos
- Write documents
- Manage servers remotely
Modern raspberry pi lapdock builds are no longer simple experiments.
For many enthusiasts, they are legitimate everyday machines.
FAQ
Q1: Can you power a Raspberry Pi directly from a lapdock without an external power supply?
Yes, but it depends heavily on your hardware combination.** Modern Type-C lapdocks (like the NexDock XL or CrowView Note) can deliver up to 15W–25W Power Delivery (PD) through their dedicated USB-C host port, which is more than enough to fully power a Raspberry Pi 4 or even a Raspberry Pi 5 under heavy loads without an external brick.
However, if you are upcycling a vintage **motorola atrix lapdock raspberry pi** setup, the native Micro-USB output is hard-limited to 5V 1A–1.5A. Attempting to power a hungry **raspberry pi 4 lapdock** project this way will trigger the dreaded "Under-voltage detected" lightning bolt icon or cause a boot-loop. For vintage docks, you must either use a dedicated external PD power bank with a USB-C splitter or heavily throttle the Pi's CPU frequency and disable onboard Bluetooth/Wi-Fi to squeeze under the low power envelope.
Q2: How do you fix a blank screen or no-signal issue when connecting a Raspberry Pi 4/5 to a lapdock?
The primary culprit is a failed HDMI handshake caused by missing EDID configuration or weak signal boost on the Pi.** Unlike standard desktop monitors, lapdocks—especially older **pi lapdock** mods—require an active Hotplug detection signal to wake up their internal display driver board from sleep mode.
To force a permanent handshake, pop your Pi's MicroSD card into a PC and edit the `/boot/firmware/config.txt` (or `/boot/config.txt` on older OS) by adding the following hardcoded overrides:
```bash
# Force the Pi to recognize the lapdock even if it boots up asleep
hdmi_force_hotplug=1
# Boost the HDMI signal drive to overcome high-resistance adapter cables
config_hdmi_boost=7
# Force standard 1080p resolution if auto-negotiation fails
hdmi_group=2
hdmi_mode=82
```
For the **motorola lapdock raspberry pi 4** setup, ensure your Micro-HDMI to female HDMI adapter is completely flushed; even a 1mm gap can break the Hotplug Detect (HPD) pin connection.
Q3: What is "power backfeeding" in a DIY Raspberry Pi laptop setup, and how do you prevent it?
Power backfeeding occurs when a lapdock simultaneously sends power to the Raspberry Pi through its charging port while the Pi tries to feed power back into the lapdock via its USB data lanes.** In a vintage **motorola atrix lapdock** build, this parallel circuitry causes a dangerous feedback loop that can overheat the Pi's power management IC (PMIC), trigger continuous hardware resets, or permanently fry the motherboard's USB controller.
To prevent power backfeeding without any soldering, you have two options:
1. **The Isolated Y-Cable Method:** Use a specialized USB-A splitter cable that separates data lines from the power line.
2. **The "Tape Trick" DIY Fix:** Take a standard USB-A to Micro-USB cable (used for the keyboard/mouse data link). Carefully place a tiny strip of electrical tape over **Pin 1 (the rightmost gold pin inside the USB-A male connector)**. This physical barrier blocks the 5V VBUS line completely while keeping Pin 2 and 3 intact for data transmission, ensuring 100% safe operation.
Q4: How do you fix mouse lag or disable "ghost touches" on a Raspberry Pi lapdock trackpad?
You can eliminate lapdock trackpad lag and accidental palm-touching by manually adjusting the I2C polling rate or utilizing Linux xinput rules.** Many generic or vintage lapdocks present their keyboard and trackpad combo as a single USB composite device (`SINO WEALTH` or standard HID mouse), which lacks advanced hardware palm rejection in standard Raspberry Pi OS (Debian/Wayland).
To fix this, you can write a quick shell script to kill the erratic trackpad while keeping the physical keyboard active for standard terminal work. First, open a terminal and run `xinput --list` to find your lapdock's exact device pointer ID. Then, execute the following script to toggle it off:
```bash
# Find your lapdock's specific mouse hardware ID
xinput --list
# Disable the unstable trackpad device (replace "10" with your actual device ID)
xinput --set-prop 10 "Device Enabled" 0
```
If you are running the latest Raspberry Pi 5 on a Wayland-based desktop desktop environment, navigate to **Preferences -> Keyboard & Mouse -> Touchpad**, and switch the acceleration profile to "Flat" while dropping the sensitivity slider by 15% to cure cursor jitter.
Is a Raspberry Pi Lapdock Worth It in 2026?
Without question.
If you enjoy building unique hardware, learning Linux, or carrying an ultra-portable workstation, a lapdock raspberry pi project is one of the most rewarding DIY builds available.
Vintage enthusiasts will love the challenge of a motorola atrix lapdock raspberry pi 4 setup.
Makers who prefer simplicity can choose modern USB-C lapdocks and enjoy a nearly plug-and-play experience.
Whether you build a tiny pi zero lapdock for hacking on the go or a powerful Raspberry Pi 5 laptop for everyday development, the result is the same:
A lightweight Linux computer that fits in your backpack, runs silently, and reminds you why DIY computing is still so much fun.
