Introduction: A 2011 Device That Still Refuses to Die

The Motorola Atrix Lapdock was originally designed for the Atrix 4G smartphone back in 2011, but in 2026 it has quietly become one of the most interesting foundations for a diy lapdock project. Not because it is modern—but because it is brutally simple.

At its core, the Atrix Lapdock is just:

  • A screen
  • A keyboard + trackpad
  • A built-in battery
  • Two direct hardware ports (Micro HDMI + Micro USB)

That simplicity is exactly why the motorola lapdock hack scene still exists today. With a few physical adapters, this old accessory can be revived into a universal portable workstation for Raspberry Pi, mini PCs, Android devices, and even some modern HDMI sources.

The only real obstacle is its unusual dual-port layout, which forces users into careful physical adaptation instead of plug-and-play convenience.

The Connection Challenge: Understanding the Atrix Physical Design

The biggest limitation in any motorola lapdock mod is the port spacing.

The Atrix Lapdock uses:

  • Micro HDMI (video input)
  • Micro USB (data/power control)

These two connectors sit extremely close together, which makes standard adapters unusable in most cases. Bulk heads collide, cables block each other, and angled adapters often fail to seat properly.

This is why most successful builds rely on a carefully selected atrix lapdock plug to usba and hdmi conversion setup built from slim-profile components.

Essential Adapter Strategy

To avoid physical interference, experienced builders use:

  • Ultra-thin Micro HDMI to HDMI extension (low-profile shell)
  • Slim Micro USB to USB-A data cable
  • Flexible ribbon-style or braided low-bulk connectors

The key requirement is not just compatibility—it is physical clearance inside the docking cavity.

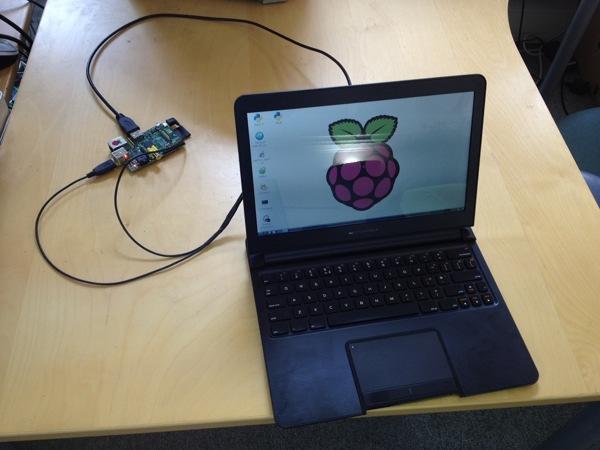

How to Mod and Hack the Classic Motorola Atrix Lapdock in 2026

Step-by-Step: Building a Functional DIY Lapdock Kit

Turning this device into a working lapdock kit requires a strict connection order and mechanical stability.

1. Secure the Interface Connections

Insert Micro HDMI and Micro USB connectors into the Lapdock’s dock interface first. Ensure both are fully seated without force misalignment. Poor alignment is the most common failure point in any motorola lapdock hack attempt.

If the connectors feel tight, do not force them. Instead, reduce casing thickness or switch to ribbon-style adapters.

2. Extend to Standard Ports

Route both connections outward:

  • Micro HDMI → Standard HDMI output
  • Micro USB → USB-A data interface

This step effectively converts the Atrix into a universal display + input dock.

At this stage, your diy lapdock becomes compatible with:

  • Raspberry Pi systems
  • Intel NUC mini PCs
  • HDMI streaming devices
  • Certain Android devices with HDMI output

3. Power Stability Check

Before powering on, verify that the Lapdock battery is charged. The internal battery is what makes this entire system viable as a portable workstation.

Once connected:

  • Attach HDMI source first
  • Then connect USB data line
  • Finally open the Lapdock

If the screen remains black, recheck HDMI hotplug contact stability.

The Hidden Problem: Motorola Atrix Lapdock Battery Behavior

One of the most overlooked issues in any motorola atrix lapdock battery restoration project is deep discharge lockout.

After years of inactivity, the battery management system may refuse to wake the pack even when external power is applied.

Battery Revival Method (Practical Field Fix)

If the battery is unresponsive:

  • Open the chassis carefully
  • Measure cell voltage using a multimeter
  • If below ~3.0V, apply controlled low-current charging (0.1–0.2A)
  • Gradually raise voltage until above 3.6V
  • Reconnect to original BMS board

This “soft revive” method is widely used in retro hardware recovery and often brings dead Lapdocks back to life without full cell replacement.

Compatibility Reality: What This System Can Actually Run

Once converted, the motorola lapdock mod setup becomes surprisingly flexible.

It can support:

  • Raspberry Pi 4 / Pi 5 desktop environments
  • Lightweight Linux distributions
  • Mini PC Windows setups
  • HDMI-capable media devices

However, performance depends entirely on the connected device—not the Lapdock itself.

The Lapdock acts as:

  • Passive display
  • USB HID input system
  • Portable battery enclosure

Technical Troubleshooting Guide

1. Auto Shutdown After a Few Minutes

A common issue in any motorola lapdock hack is unexpected shutdown.

This happens because the internal power controller detects low USB current draw and assumes no active device is connected.

Fix options:

  • Add a dummy load resistor (around 100Ω) on USB line
  • Connect an active USB device (LED hub, dongle, etc.)
  • Ensure stable data + power handshake is maintained

2. No HDMI Signal Detected

If the screen stays black:

Adjust system HDMI settings (for Raspberry Pi or Linux systems):

hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=86

These settings help stabilize signal detection in older Lapdock panels.

3. Keyboard Mapping Issues

Old Atrix keyboards may behave unpredictably on modern systems.

Fix in Linux:

  • Run xinput --list
  • Identify the Lapdock input device
  • Apply correct keymap or load device-specific layout

This restores proper Fn key and symbol mapping.

Why This Hack Still Matters in 2026

Modern portable monitors are expensive, yet the Atrix Lapdock offers something rare:

  • Built-in battery
  • Integrated keyboard
  • Zero firmware dependency
  • Pure hardware input/output bridge

A successful motorola lapdock hack transforms it into a self-contained portable workstation that costs almost nothing compared to modern alternatives.

It is not about convenience. It is about reuse, engineering curiosity, and extending hardware life far beyond its intended cycle.

Conclusion: A Hardware Revival Project Worth Doing

The motorola lapdock mod is more than a DIY experiment—it is a demonstration of how older engineering can still outperform expectations when properly adapted.

With a simple atrix lapdock plug to usba and hdmi conversion setup, a dead piece of early-2010s hardware becomes a functional modern workstation shell.

A well-built diy lapdock does not try to compete with new devices. It redefines what “usable hardware” means in the first place.

If anything, the Atrix Lapdock proves one thing clearly: good hardware never truly becomes obsolete—it just waits for the right adapter.
